DLV-EE and DLV-IoT for Data-Intensive, Distributed and IoT Applications
The DLV-EE system is a framework based on Answer Set Programming (ASP) for performing declarative-based reasoning tasks over data-intensive, distributed applications. It
is based on the DLV2 system, and features interoperability means for dealing with Big-Data over modern, industry-level, databases (both relational and NoSQL).
The framework emerges from the integration of different versions of DLV2 exploiting all most recent and advanced features, and, moreover, interact with Big Data systems and external database systems (both relational and NoSQL).
The DLV-IoT system is an ASP system compatible with “mobile” technologies for enabling advanced reasoning capabilities on smart/IoT devices.
It works on Android and Raspberry systems and can natively execute logic programs as long as the input is small and the complexity of the logic programs is not high.
To this end it performs an estimation of the computational
workload, thus deciding whether it can be reasonably executed locally; if this is
not the case, it interacts with DLV-EE via the REST services.
System Architecture

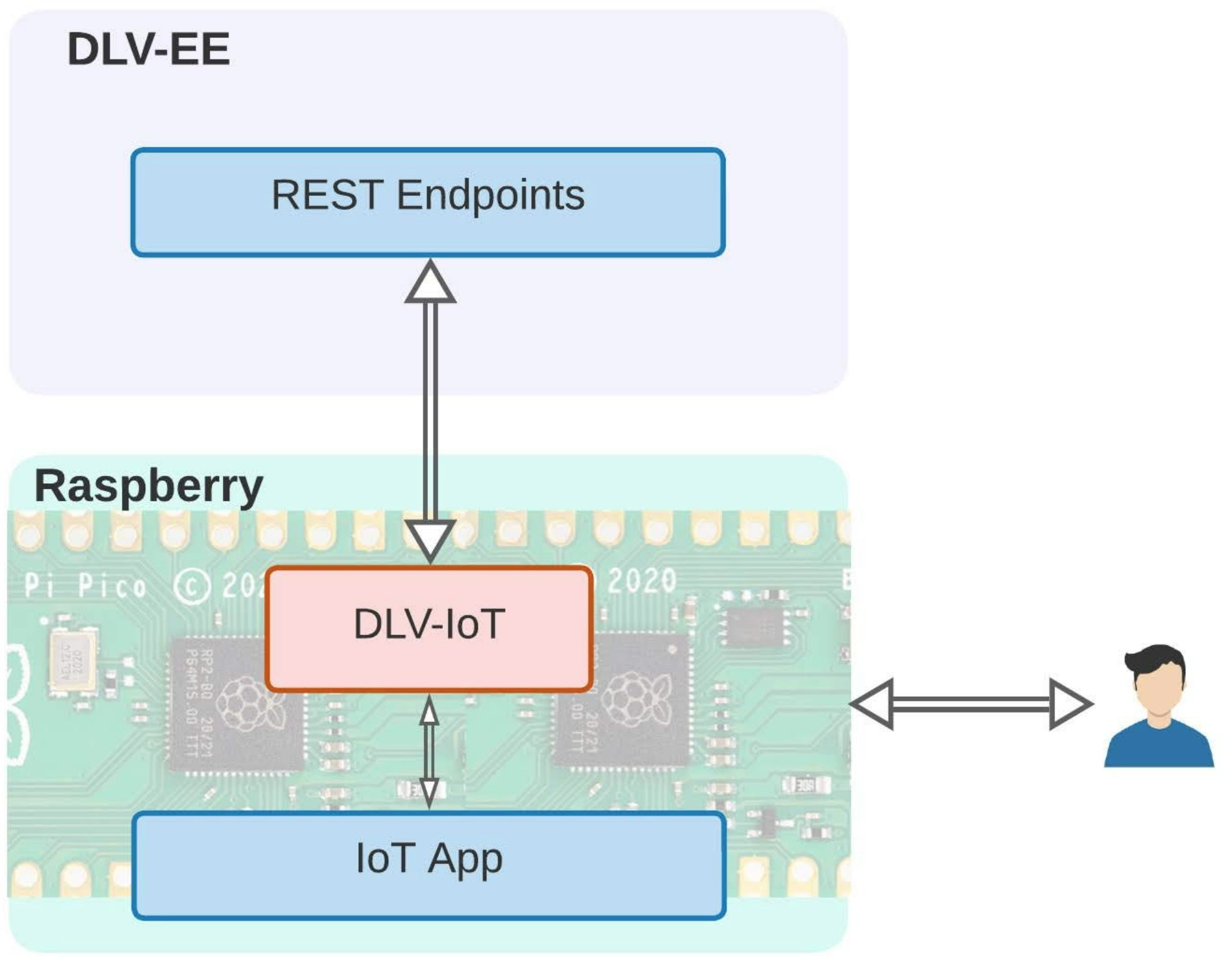

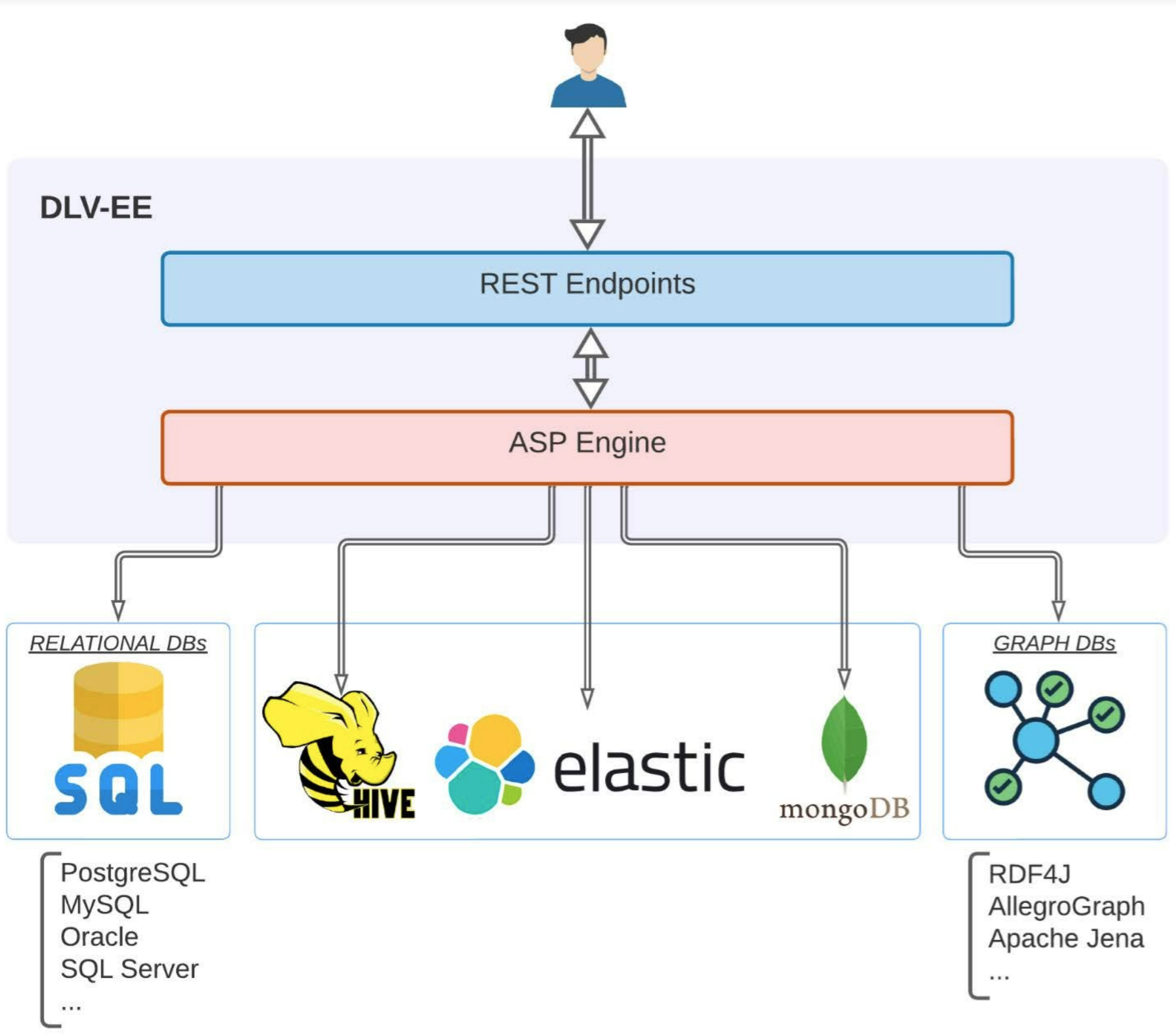

Following Figure depicts the architecture of DLV-EE and DLV-IoT.
DLV-EE ArchitectureDLV-Iot Architecture
Use Case: an Android App for planning touristic itineraries
NavTour is an Android App created for allowing the user to generate scheduled tourist itineraries by exploiting DLVNavigator,
a web service, based on DLV-EE (which has been endowed with
additional features) that can automatically generate scheduled tourist,
itineraries.
For the generation
of a scheduled tourist itinerary (we call it a tour), a proper ASP program has
been implemented. The ASP program is
composed by two layers; we report next some details. The first layer basically
consists of the following rules:
n(1..14).
n_category(C,N) :- category(C), #count{ID: poi(ID,_,_,_,_,_,_,
C,_,_)} = N.
The facts in Rule 1 specify how many POIs a user can visit in a tour, at
most. Rule 2 defines the extension of predicate n category, collecting the number
of existing POIs for each category. Choice Rule 3 guesses, for each category,
a number of POIs to visit that does not exceed a given maximum (specified
by Rule 1). Predicate node is the output predicate that collects the candidate
POIs of the final tour. A starting POI is specified in input and will be part of
the tour (see Rule 4); subsequent POIs will be chosen by considering the same
choosen category (see Rule 5). The first Weak Constraint (Rule 6) ensures that
the chosen nodes respects, as much as possible, the user preference summarized
by predicate partition, where the first attribute represents a category and the
second attribute is a preference value containing the number of nodes that a user
would like to visit for that category. In such a way, the Weak Constraint states
that the number of nodes of the tour, preferably, should match the value of the
partition. The second Weak Constraint (Rule 7), specify to minimize, with lower
priority, the cost for visiting the POIs.
The second layer consists of following ASP rules:
slot(X,IN,OUT) :- start(X), node(X,_,DT), poi(X,IN,_,_,
_,_,_,_,_,_), OUT=IN+DT, budget(B), OUT
slot(Y,IN,OUT) :- slot(X,_,OUTP), inPath(X,Y,TT,_),
node(Y,_,DT), budget(B), IN=OUTP+TT, OUT=IN+DT, OUT
The answers sets of this program represent the final tour for the user via
predicate slot. The attributes of the predicate represent, respectively, the place
(node) to visit, the entry time and the exit time. Rule 1 states that, for a given
node of the candidate POIs, get the entry time and the exit time of the place
being careful to not exceed the temporal budget of the user. Rule 2 is a recursive
rule that builds the tour by considering subsequent entry/exit time and the
available time budget. The predicate inPath of the rule is determined using a
variant of the well known Hamiltonian Path problem ASP encoding, that, in
our case, is used to minimize the distance between single locations.
Here some screenshots regarding the Android App called NavTour.

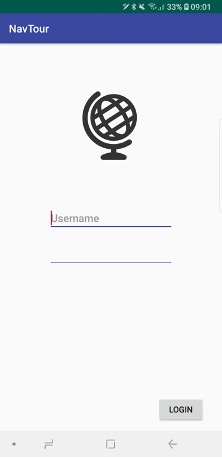

Fig. 1. Login to the App

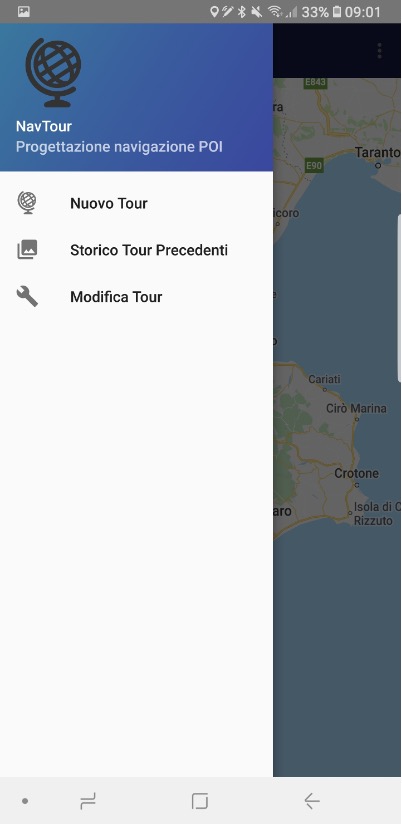

Fig. 2. Home Page

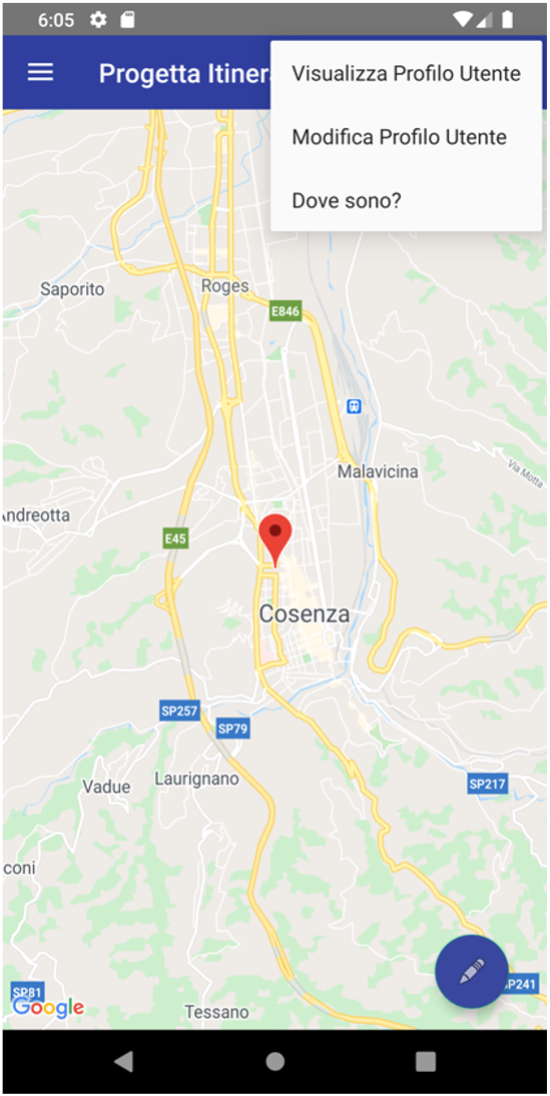

Fig. 3. Edit User Profile
Fig. 4. Create a New Tour

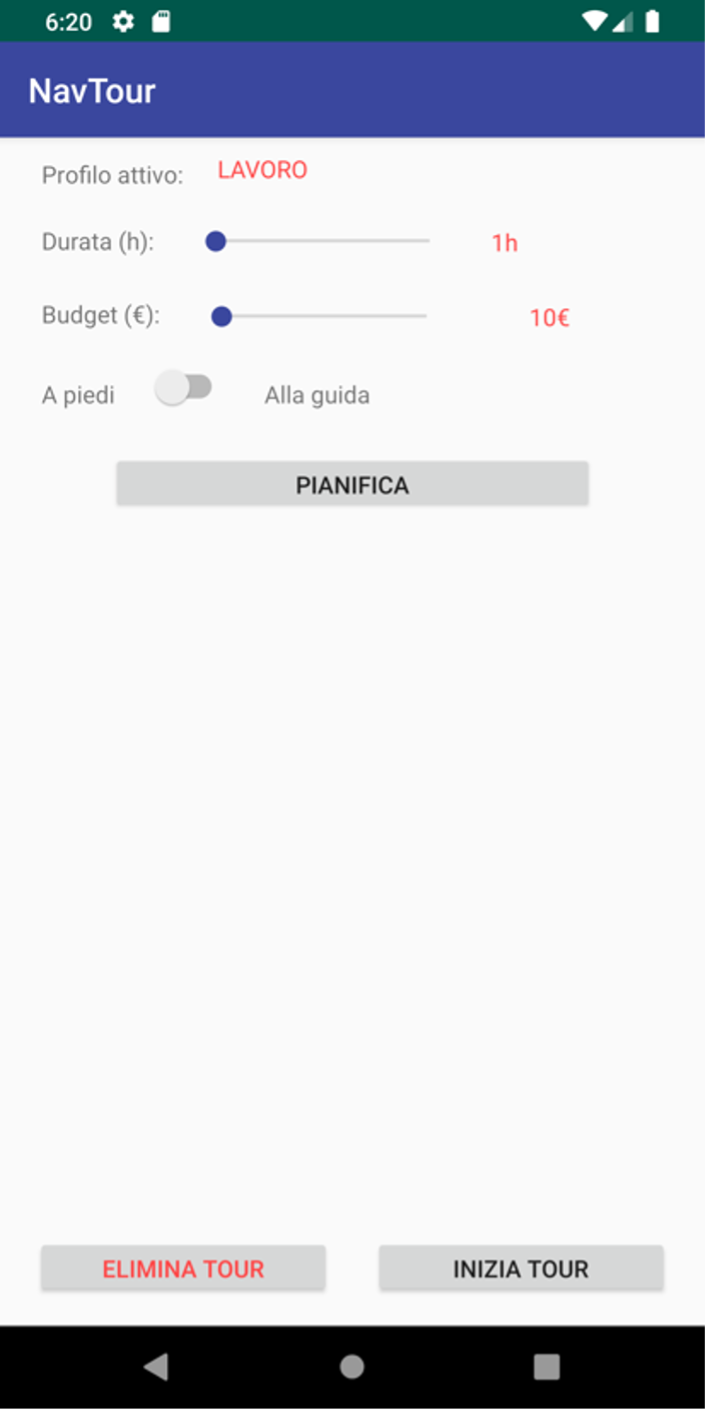

Fig. 5. Set the Tour Preferences: Duration, Budged, Mode

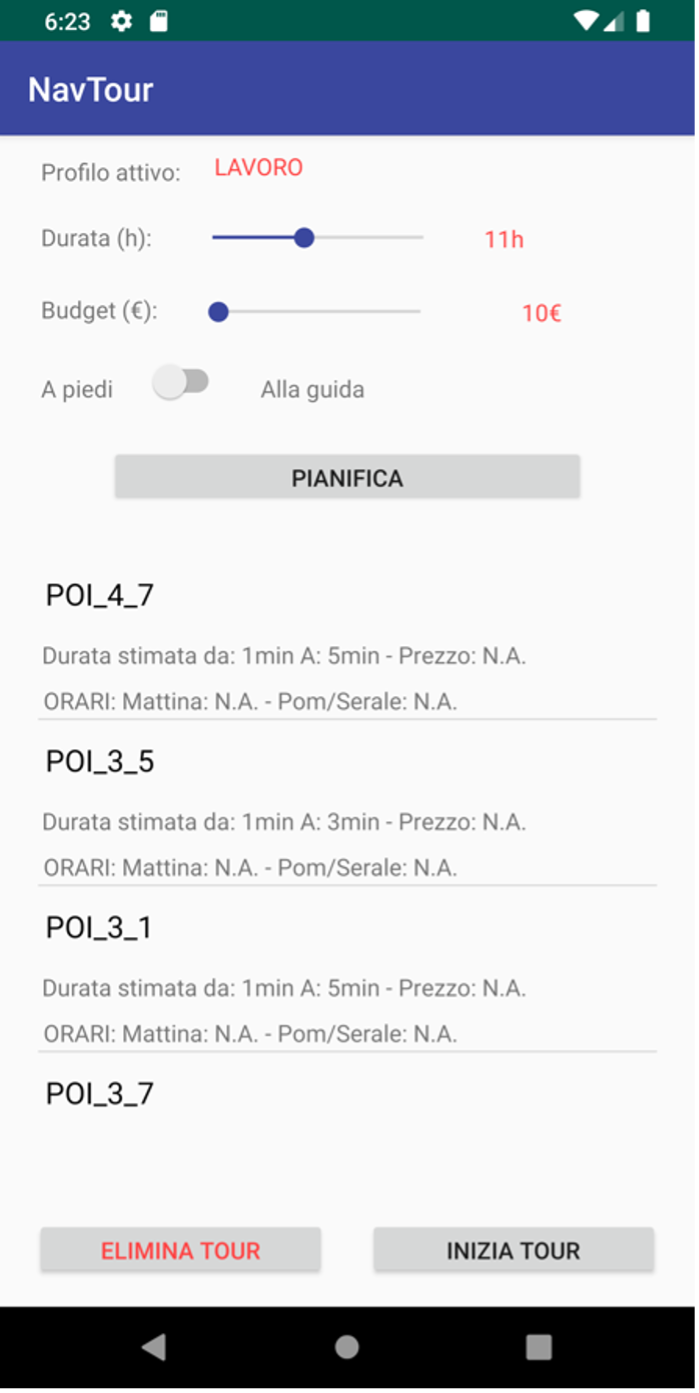

Fig. 6. The planned Tour by considering the Preferences

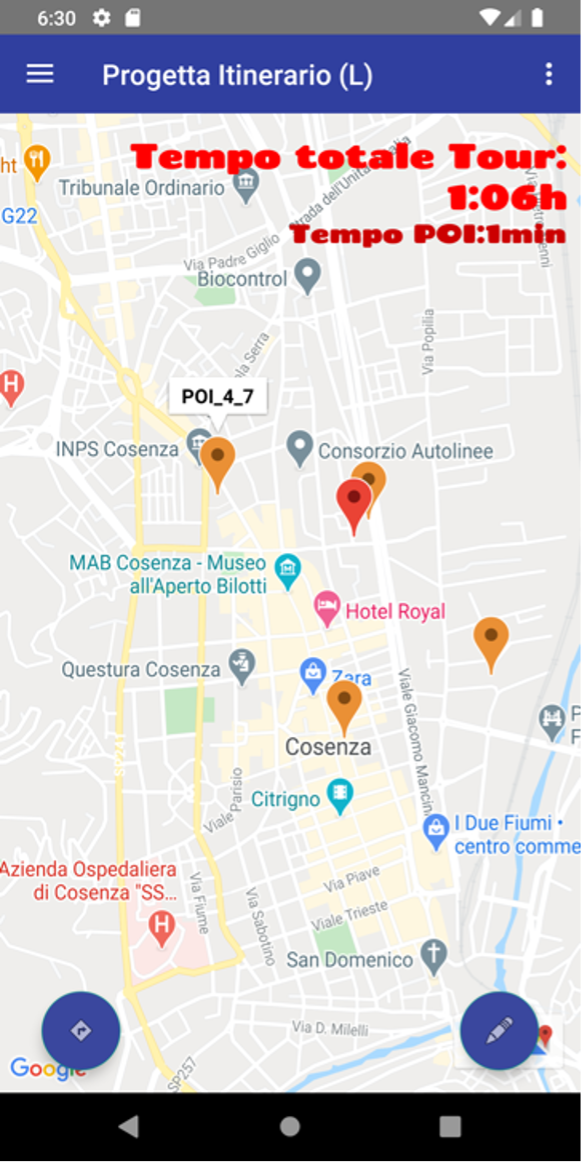

Fig. 7. The planned Tour to the Map. The tour is started

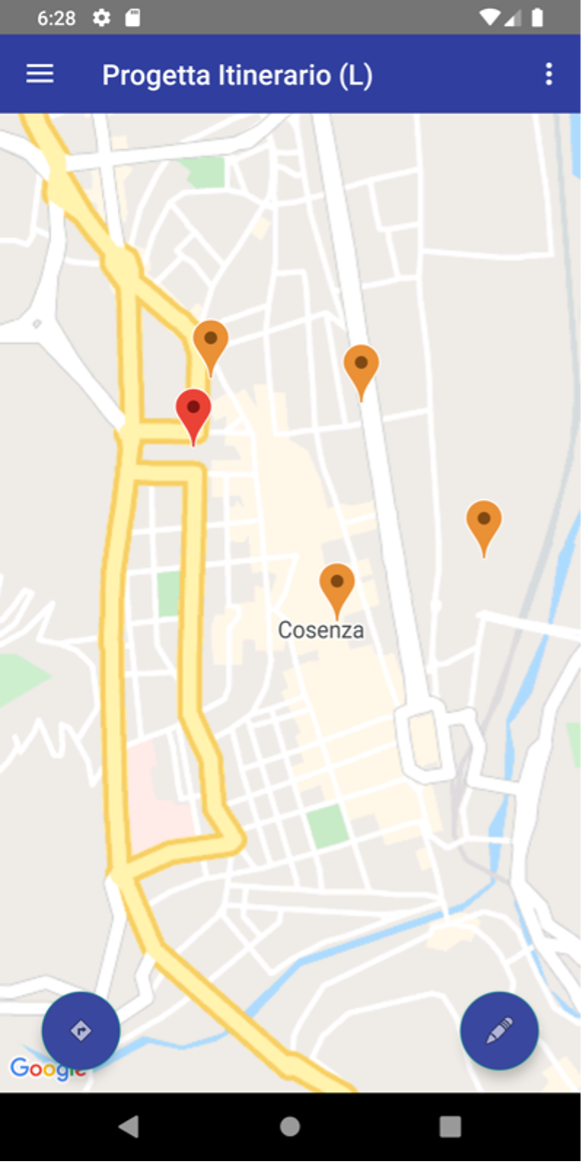

Fig. 8. Moving through the New planned Tour

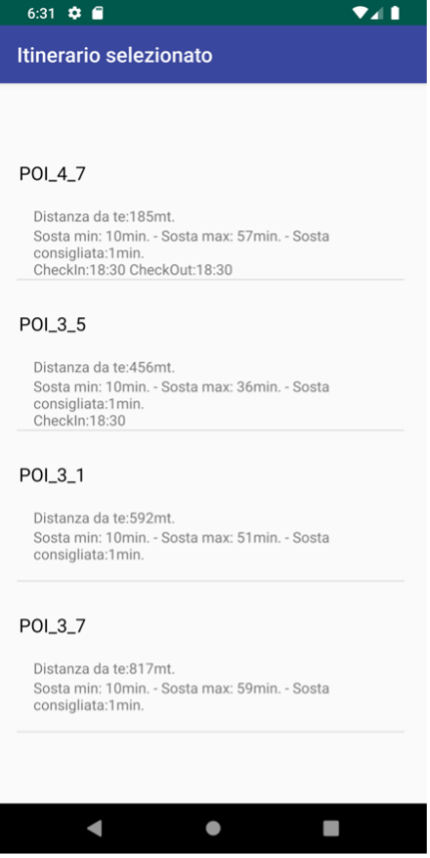

Fig. 9. Textual view of the New planned Tour

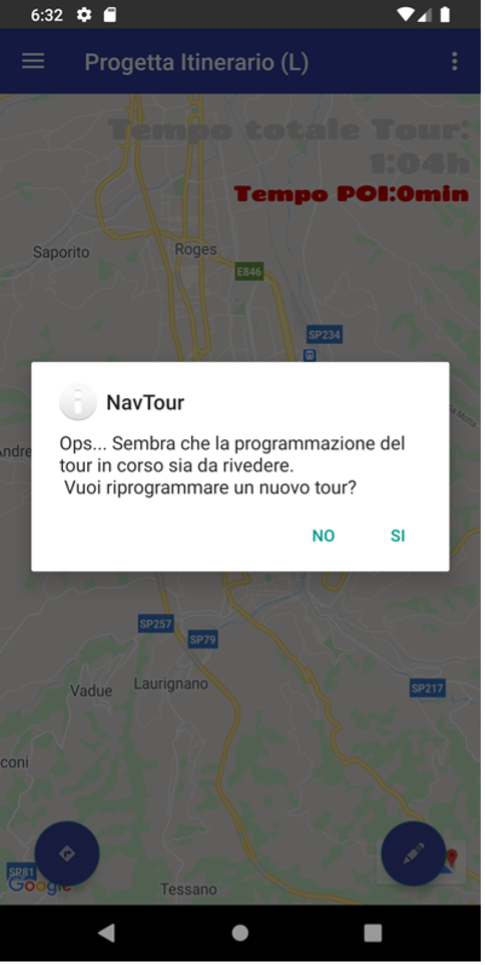

Fig. 10. Visit time expired for a place. Ask for recalculating the tour

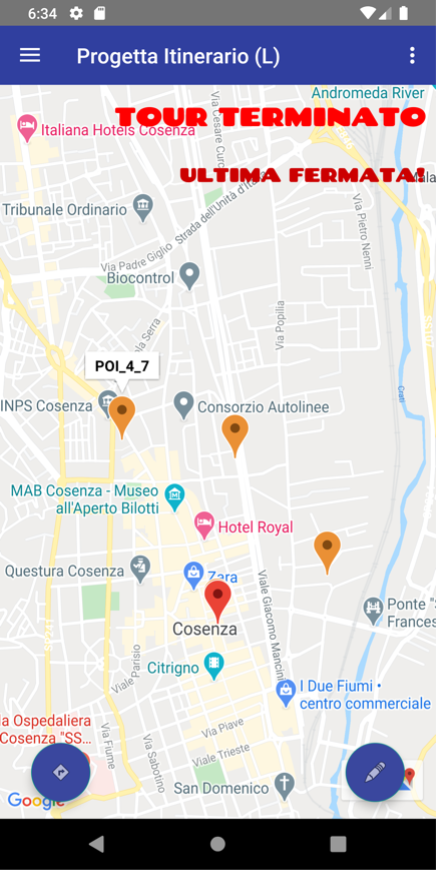

Fig. 11. Reached the last place: the Tour is terminated

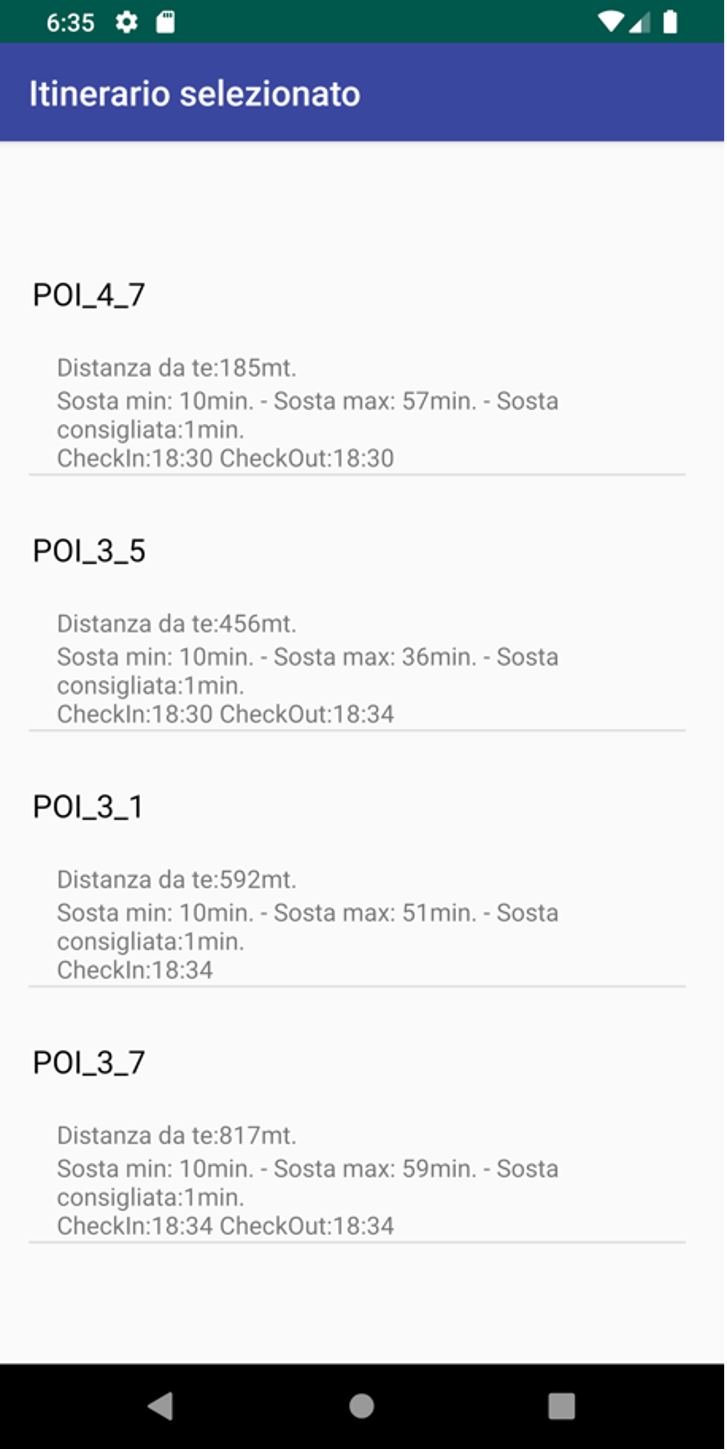

Fig. 12. Check-in and Check-out time for every place
Download
In the following you can download all the components related to DLV-EE and DLV-IoT. For any support to the installation process of the components, please write to reale_AT_mat.unical.it
