Lesson Plan Title: HttpOnly Test


Concept / Topic To Teach:

To help mitigate the cross site scripting threat, Microsoft has introduced a new cookie attribute entitled 'HttpOnly.' If this flag is set, then the browser should not allow client-side script to access the cookie. Since the attribute is relatively new, several browsers neglect to handle the new attribute properly.


General Goal(s):

The purpose of this lesson is to test whether your browser supports the HTTPOnly cookie flag. Note the value of the unique2u cookie. If your browser supports HTTPOnly, and you enable it for a cookie, client side code should NOT be able to read OR write to that cookie, but the browser can still send its value to the server. Some browsers only prevent client side read access, but don't prevent write access.

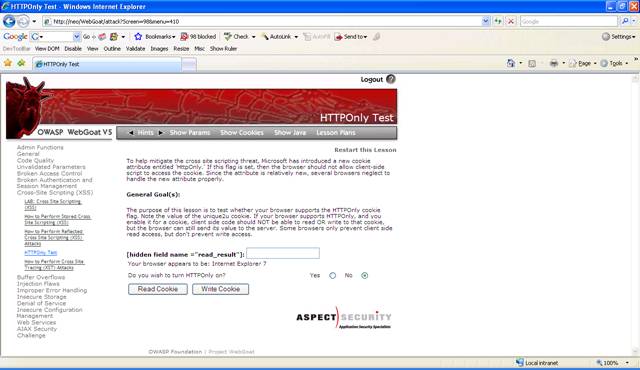

Figure 1 Lesson HTTPOnly Test




HTTPOnly is not configured. When you click on "Read Cookie" you will get the following pop-up in JavaScript, displaying the cookies

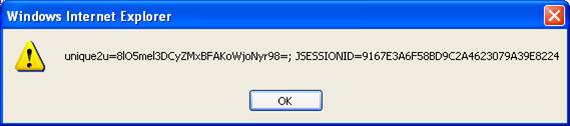

Figure 2 All cookies


Select "Yes" to turn HTTPOnly on. Intercept the HTTP Request and HTTP Response in WebScarab.

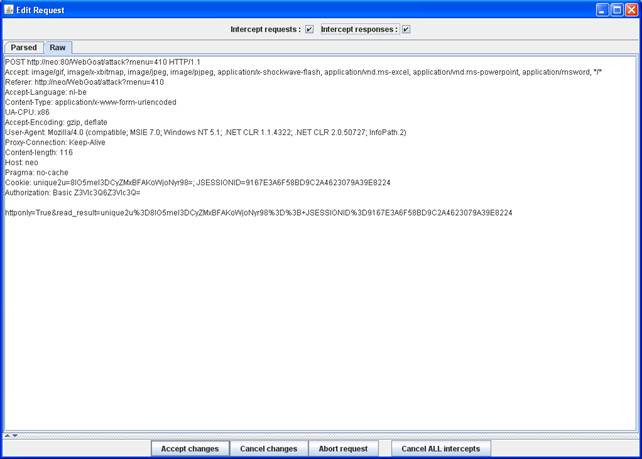

Figure 3 HTTP Request

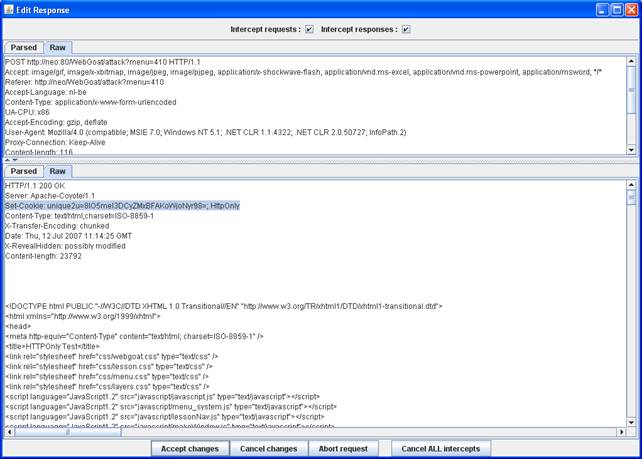

Figure 4 HTTP Response with HTTPOnly cookie



Click on "Read cookie". You will see the JSESSIONID which is not using HTTPOnly.

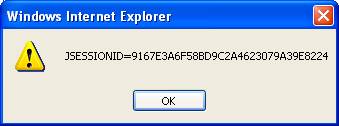

Figure 5 Only JSESSIONID

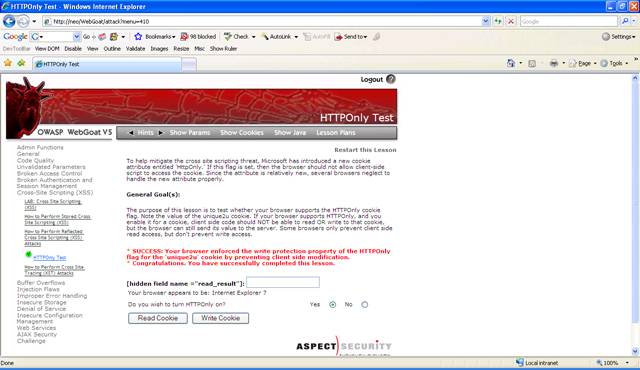

Figure 6 HTTPOnly Success


Click on “Write cookie” which again only shows the JSESSIONID cookie.


Figure 7 JSESSIONID cookie


Figure 8 Lesson completed


Solution by Erwin Geirnaert ZION SECURITY
